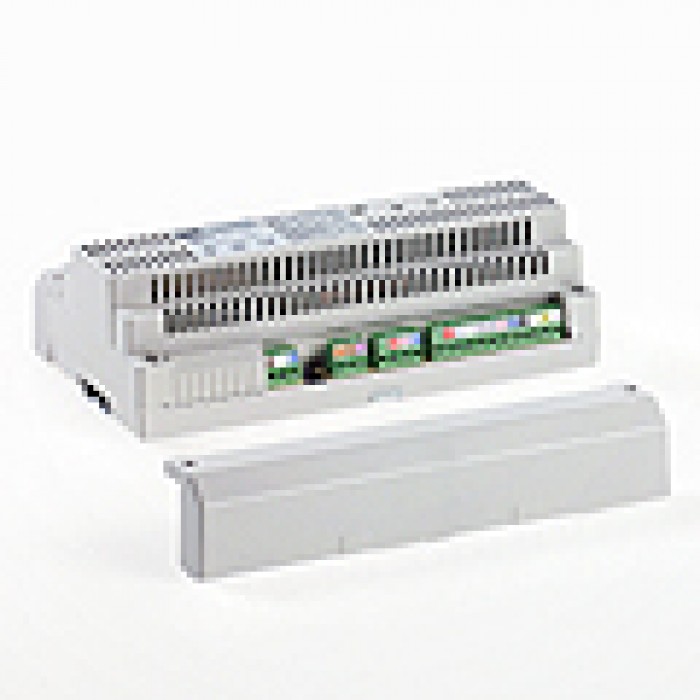

BPT VA/200.01 control unit and power supplier for system 200
BPT VA/200.01, Control unit and power supplier, system 200
Main video entry power supply unit.
Features are as follows:
powers timed door lock release in the range 1 to 15 seconds;
timed system activation 30 seconds, adjustable up to 90 seconds with the receiver lifted;
different call note option;
output for stair light control actuator.
Power supply: 230V. Power demand: 60VA.
Voltage outputs: 17.5V DC, 0.9A on constant duty plus 0.6A on intermittent duty - 12V DC, 0.4A - 12V DC, 0.5A on intermittent duty
