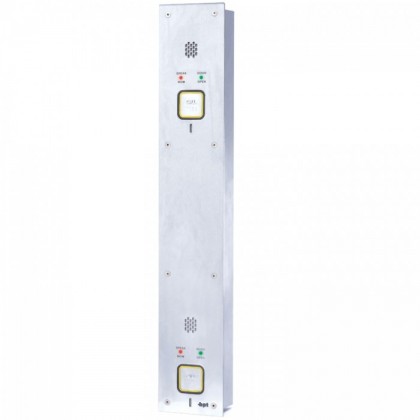

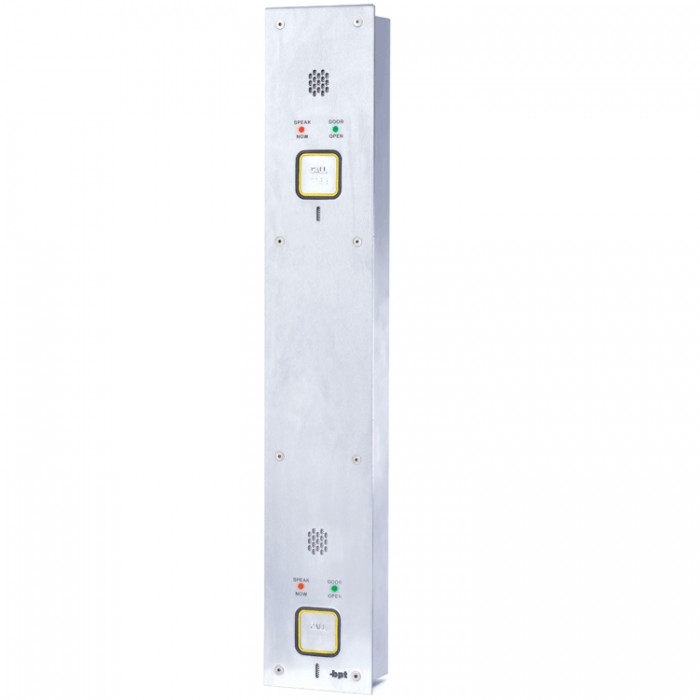

BPT VRAKDDA.01/DUAL flush mounted VR Audio DDA keypad dual height with 1 button - DISCONTINUED
We are sorry but this product is no
longer available. We have listed suitable alternatives below under the
title SIMILAR PRODUCTS.
If there are no SIMILAR PRODUCTS listed or
you can’t find what you need, please call us on 01895 232 626 or email
[email protected] with your requirements.
Audio entry panel with a front plate in stainless steel and dual-finish surface, circuit board for XiPsystem, BPT Prox reader.
LCD graphic display, 128x128 pixels, with a white backlit screen, 4 function keys for navigating user commands and lists, an alphanumeric keypad, 2 function keys for sending coded calls and access code confirmation, built-in proximity key reader.
“Quick Start” programming of all parameters using on-screen guided menus. Mini USB connector for programming using the software tool. DIP switches for adjustment of the line impedance. The local command for door lock, inputs for door lock release button, door status signaling devices, and output connector for activation of external cameras.
Blue LEDs (8) for backlighting of keys with name labels. LEDs for visual control of the status of the system: red "call connected" LED, green "door open" LED, yellow "call in progress" LED, blue "system busy" LED.
Protection rating IP 54.
Dimensions (WxHxD): 140x380x2 mm.
The DDA entry panel range is manufactured in the UK to the highest standards. After extensive research into relevant legislation, the panel designs are aimed at providing improved access solutions in line with the current Disability Discrimination act. With a robust stainless steel finish and a number of features to assist users with a range of disabilities, the DDA panel is suitable for the most demanding of applications.
- Brushed Stainless steel construction
- Braille/tactile illuminated buttons
- 'Speak now' and 'door open' LED indicators
The DDA range offers a number of enhanced access options from standard braille/tactile illuminated buttons to coded keypads, proximity access readers and hearing aid loops. Video or audio, single or dual height, there are panels to suit any number of access requirements whatever the environment.
Dual height options
In addition to single panels, a range of specially designed dual-height panel options are available. These are suitable for situations where both standing and wheelchair users need to be taken into consideration. When the lower-level push buttons are placed within the correct parameters, the upper panel is automatically in the optimum position for use, eliminating a lot of the guesswork associated with correct positioning.
